Credentials
This section explains how to manage username and password details for logging into a device.
In a typical installation, most credentials are hidden using the Admin Only
check box described below. However, when a user creates a credential, it becomes available under Step 2
of most services as a Named Credential
.
Advice
These are the required fields when creating a Named Credential
:
- Name: Unique identification for referencing the credential
- Role: Read and write, or read only.
- Subtype: Choose between
Username / Password
orSSH Key
. - Groups: Groups of users which will have access to these credentials.
- Username: The username for both
Username / Password
andSSH Key
connections. - Password or Private Key: If
Subtype
from above isUsername / Password
, the field becomesPassword
. IfSubtype
from above isSSH Key
, the field becomesPrivate Key
.

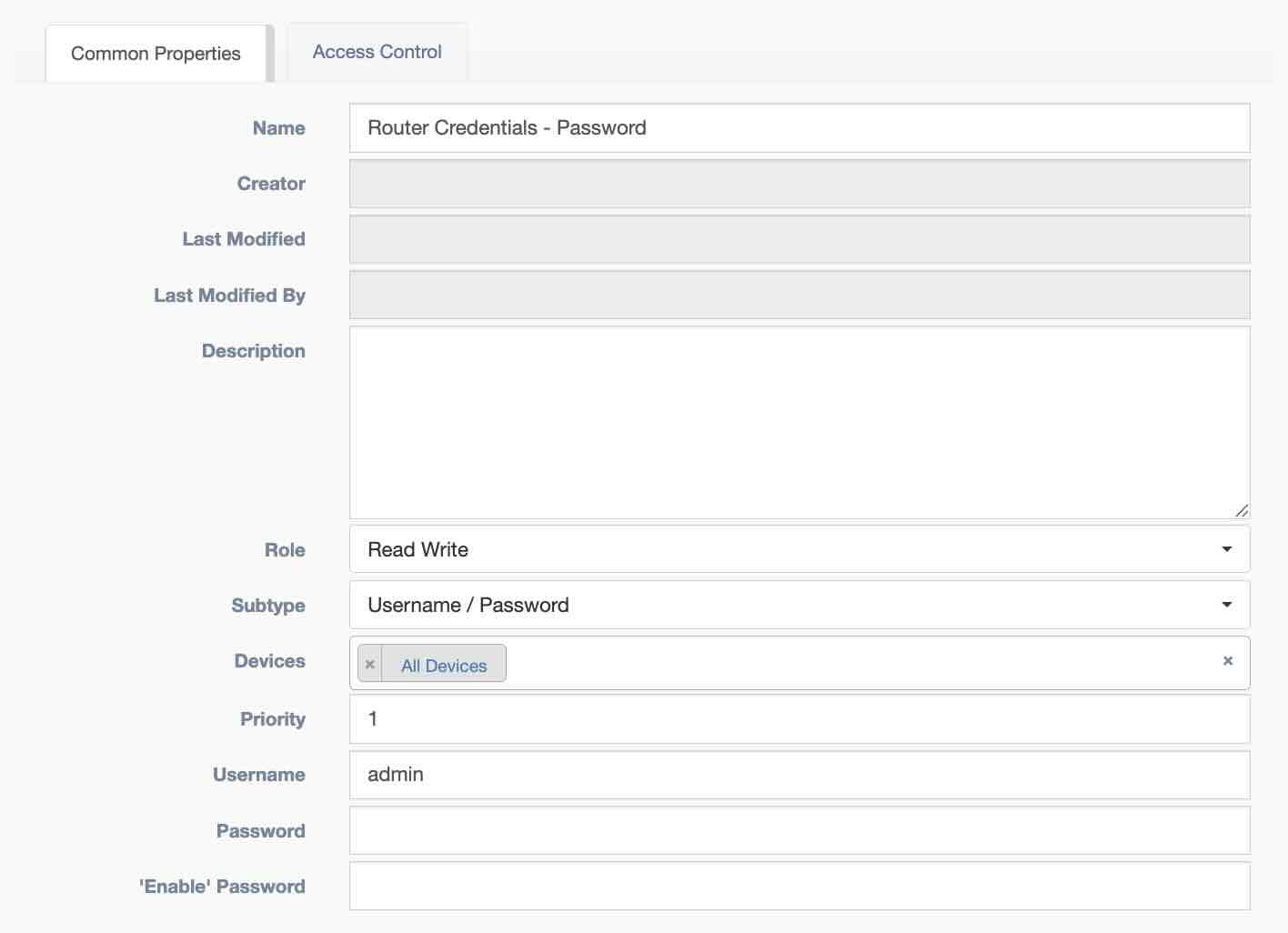

Credential Details
- Name: Unique identification for referencing the credential
- Creator: Auto Populated field based on the user who built the credential
- Admin Only: An override of
Access Control
, which prevents non-admin users from viewing or editing the credential object. However, this does not determine who can use the credential, which is handled byUsers
below. -
Description: Text field for storing notes
-
Role: Read and write, or read only.
- Subtype: Choose between
Username / Password
orSSH Key
. - Devices: Pool of devices which will have access to these credentials.
- Groups: Groups of users which will have access to these credentials.
- Priority: When a user has access to multiple credentials for a device, the credential with the highest priority is chosen.
- Username: The username for both
Username / Password
andSSH Key
connections. - Password or Private Key: If
Subtype
from above isUsername / Password
, the field becomesPassword
. IfSubtype
from above isSSH Key
, the field becomesPrivate Key
. - 'Enable' Password: Used by Netmiko based services when Enable mode is selected and a password is required. This is not related to device connection, but is included on the credential for Vault storage.
Access Control Details
- Details on Access Control for this object
Vault Details
A vault is typically used to store a device's credentials, for a production environment, Hashicorp Vault is recommended. Credentials may also be stored in the main database.
